X-Planes & Prototypes

Bell X-22 V/STOL (1966)

Bell X-22 V/STOL

Anigrand Craftswork Logo

SCALE: 1/72

INITIAL RELEASE: 2002

MEDIUM: Resin/Vac

RARITY: (2)



Bell X-22 V/STOL



Bell X-22 V/STOL

Bell X-22 V/STOL

  Bell X-22 V/STOL



Bell X-22 V/STOL

Bell X-22 Coming Home



ABOUT THE DESIGN

ABOUT THE KIT

In yet another attempt to develop a practical VTOL transport, the U.S. Navy developed this four tilt-rotor research craft as part of a joint Navy/Army/Marines (Tri-Service) program in the mid-1960s.  For the Navy, the advantage of this design was that, (1) It was small enough to fit on a typical aircraft carrier elevator platform and (2) The ducts around its four propellers would provide protection for crewmen working on and near the vehicle.

The first X-22 flew in March 1966.  It was damaged on its 15th flight, its parts salvaged to build another X-22 that completed 228 tests until it was retired in 1984.  The plane now resides on display at the Niagara Aerospace Museum in Niagara Falls, N.Y.

This resin model in 1:72 scale was Anigrand's second release.

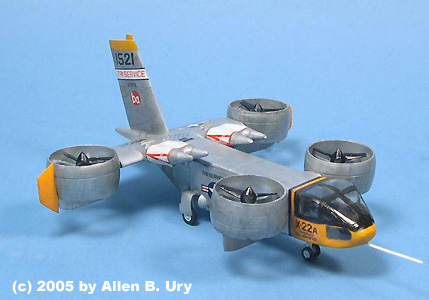

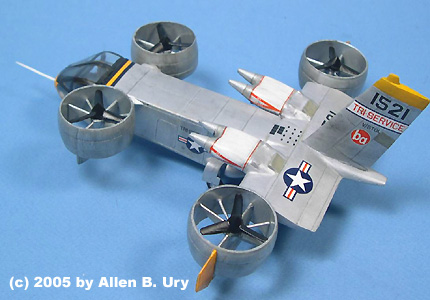

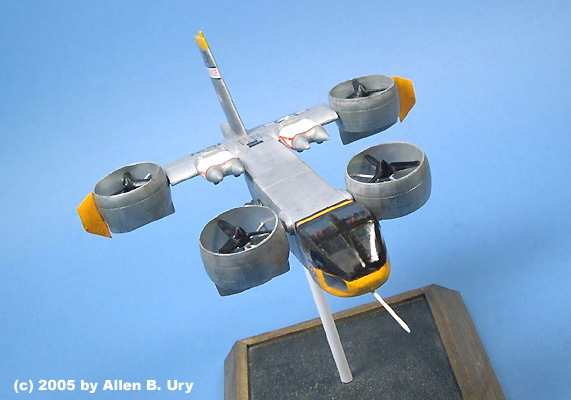

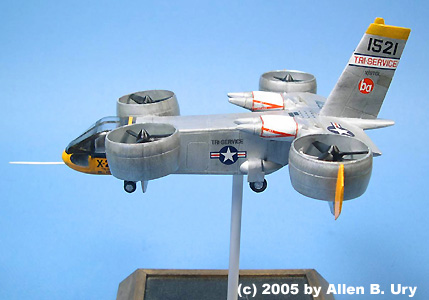

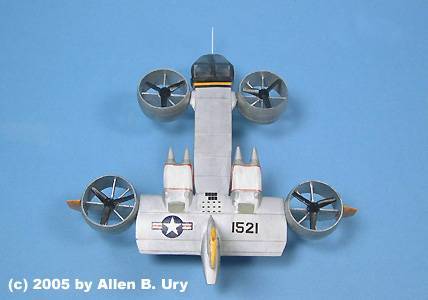

This model was built from an original issue.



Bell X-22 V/STOL Box Art

Bell X-22 Original Box Art
